Grinding Wheel Adapters & Spindles for Every Tool & Cutter Grinder

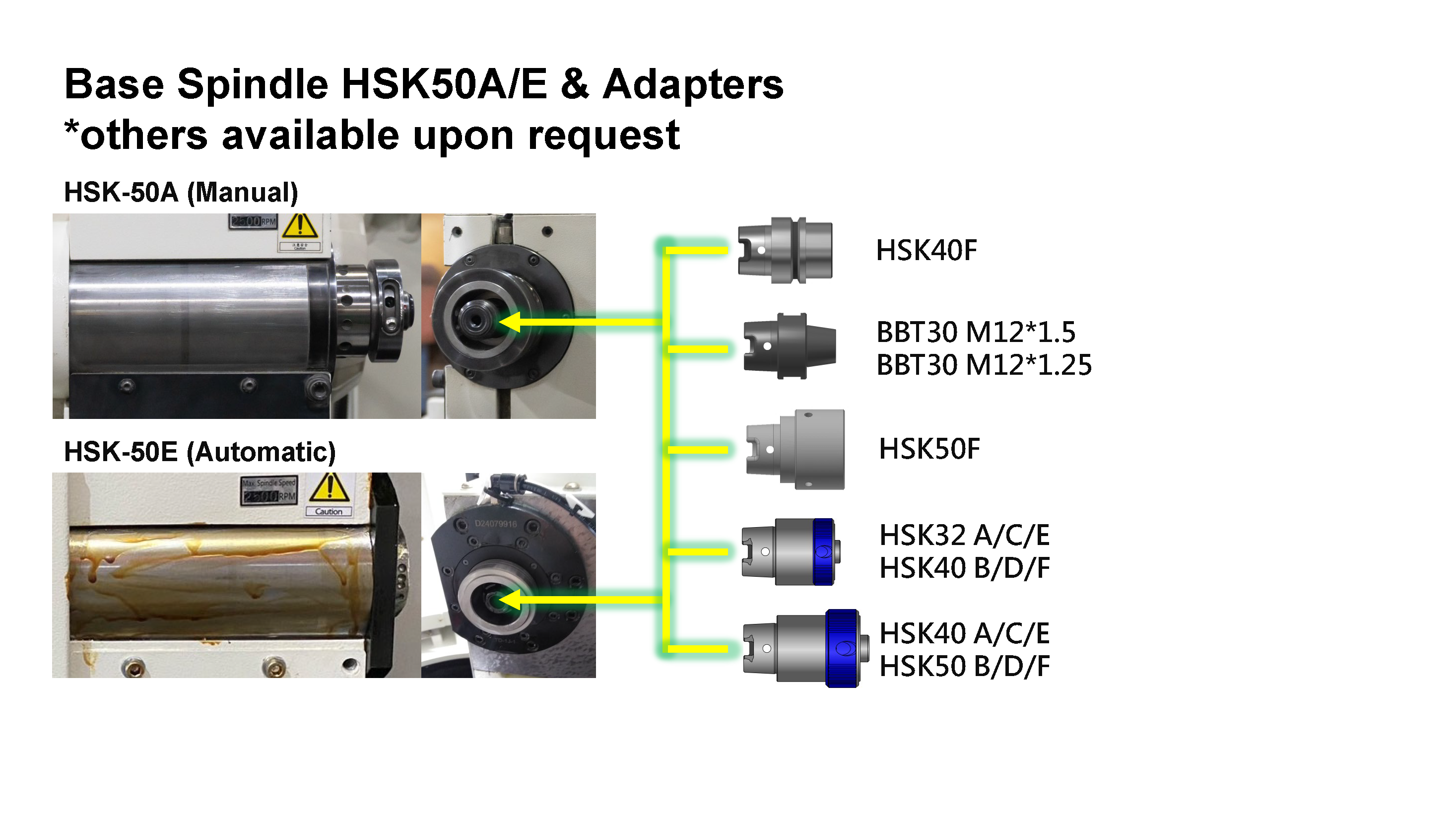

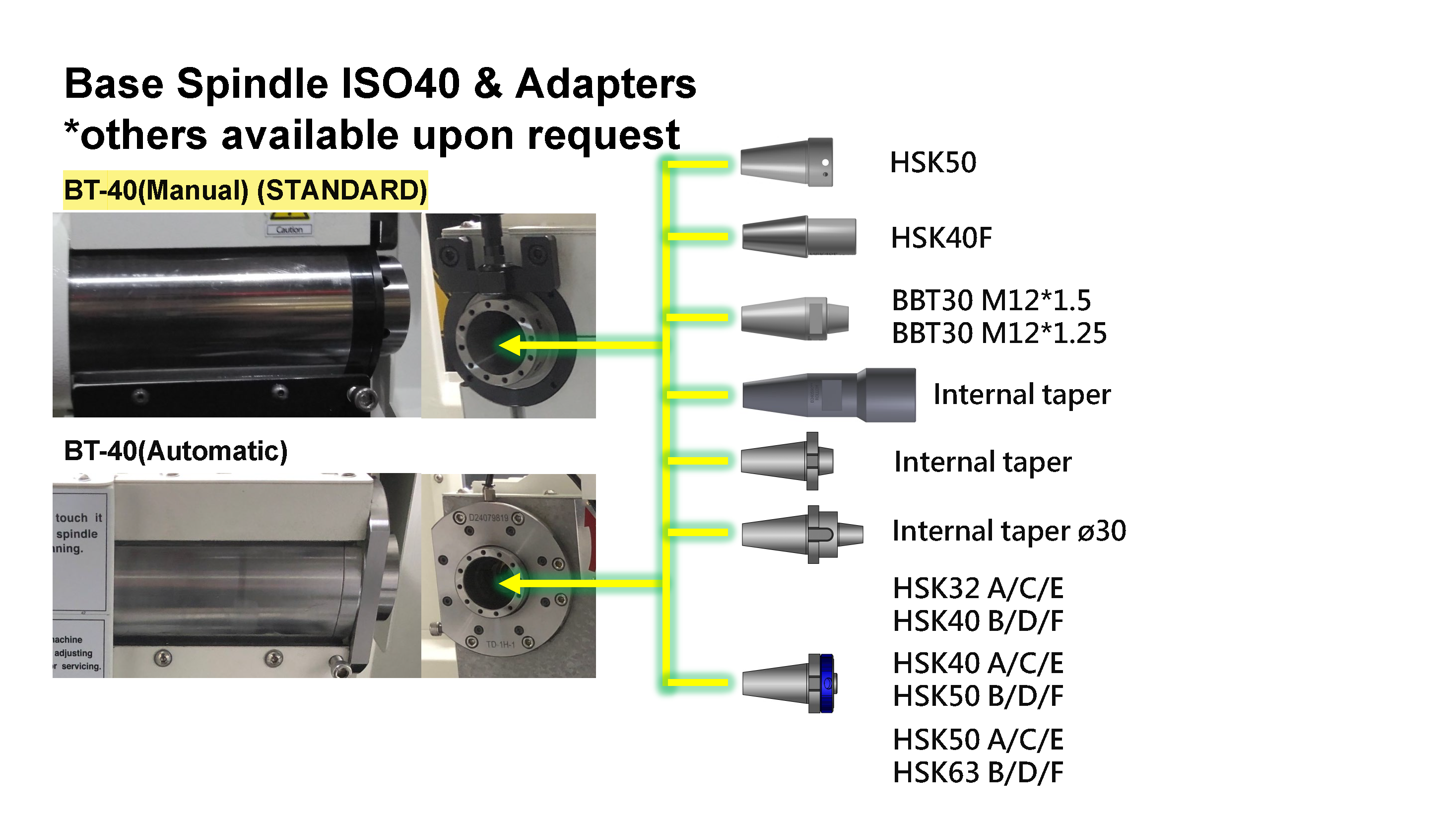

Base Spindle Options

Standard and optional spindles cover the most common wheel interfaces for any tool & cutter grinder.

Adapters & Machine Compatibility

Adapters are available to match all major grinding platforms and wheel interfaces.

Grinding Wheel Adapters by Grinder Platform

The EliteDress adapter library lets one dressing machine accept wheels from every major CNC tool & cutter grinder. Find your platform below, and we'll confirm the exact grinding wheel adapter or arbor before you order.

ANCA Grinding Wheel Adapter & Arbor

ANCA tool grinders are the most common carbide endmill platform in North America. ANCA wheel-pack interfaces vary by machine generation and spindle configuration. Volumetric Machinery confirms the grinder model, wheel-pack arbor and interface before specifying the appropriate EliteDress adapter. EliteDress ANCA grinding wheel adapters and ANCA grinding wheel arbors are a standard configuration, so full wheel packs transfer directly from your ANCA grinder to the dresser and back without re-mounting individual wheels or investing in special tooling.

Because the wheel stays on its arbor through the dressing cycle, the trued and dressed geometry you verify on the EliteDress CCD camera is exactly the geometry that goes back on the ANCA — no transfer error. For a typical ANCA shop running CBN or diamond wheels for endmill regrinding, the EliteDress 200 or 300 covers flat, angle, and radius dressing across the full wheel pack.

Rollomatic Grinding Wheel Adapter & Arbor

Rollomatic grinding centers — such as the GrindSmart series — run smaller-diameter wheels in high-volume Swiss-style endmill and drill production. Rollomatic wheel-pack interfaces vary by machine generation and spindle configuration, so Volumetric Machinery confirms the grinder model, wheel-pack arbor and interface before specifying the appropriate EliteDress Rollomatic grinding wheel adapter or arbor.

In a high-volume Rollomatic environment every minute of spindle downtime carries a real cost, so dressing wheels in an unattended EliteDress cycle — rather than pulling an operator off the production grinder — directly improves machine utilization across the shift. Adapters and arbors are supplied to match your confirmed wheel interface.

Walter Grinding Wheel Adapter

Walter tool grinders (Helitronic Power, Vision, and Raptor families) run tight-tolerance form wheels for step drills, reamers, and special profile tools. Walter wheel-pack interfaces vary by machine generation and spindle configuration, so Volumetric Machinery confirms the grinder model, wheel-pack arbor and interface before specifying the appropriate EliteDress Walter grinding wheel adapter, keeping those form wheels trued and dressed to the same profile tolerance every cycle.

For the complex form work Walter shops run, the EliteDress 300 and 500 are the appropriate fit: the 300 handles radius and angle dressing on a servo B-axis, and the 500 adds DXF profile import so the target geometry comes straight from your CAD file. Whether you call it a Walter grinding wheel adapter or a Walter grinder wheel adapter, we confirm the exact interface before quoting.

Vollmer Grinding Wheel Adapter & Spindle

Vollmer carbide machining centers (such as the QXD and QWD series) run tight-tolerance form and profile wheels. Vollmer wheel-pack interfaces vary by machine generation and spindle configuration, so Volumetric Machinery confirms the grinder model, wheel-pack arbor and interface before specifying the appropriate EliteDress Vollmer grinding wheel adapter and spindle — giving you the mounting compatibility to true and dress Vollmer form-tool wheels with CCD-verified geometry on the EliteDress 300 or 500.

Schütte Grinding Wheel Adapter

Schütte multi-axis tool grinders (the 305 and 325 lines among them) use their own arbor configurations that vary by machine generation and product line. Volumetric Machinery confirms the grinder model, wheel-pack arbor and interface before specifying the appropriate EliteDress Schütte grinding wheel adapter.

Haas, Schneeberger, Saacke & Reineker Adapters

Haas tool grinders, Schneeberger grinding systems, Saacke, and Reineker platforms are supported through the EliteDress adapter program. The adapter library spans HSK-32, HSK-40, HSK-50, and HSK-63 in A, B, C, D, E, and F variants, plus BBT-30 and custom adapter work on request. Wheel-pack interfaces vary by machine generation and spindle configuration, so send your grinder model and wheel interface spec and we confirm compatibility before quoting.

For platform selection guidance, see Wheel Dressing Machine Compatibility: ANCA, Walter, Rollomatic, and Other CNC Tool Grinder Platforms.

Grinding Wheel Adapter FAQ

Which grinding wheel adapter do I need for my grinder?

It depends on your grinder's specific wheel interface, which varies by machine generation and spindle configuration. Send us your grinder make, model, and wheel-pack details and we confirm the correct EliteDress adapter or arbor before you order.

Can one EliteDress accept wheels from more than one grinder brand?

Yes. The EliteDress adapter library covers ANCA, Rollomatic, Walter, Vollmer, Schütte, Haas, Schneeberger, Saacke, and Reineker interfaces, so a single dresser can service a mixed grinding room by swapping adapters.

What is the difference between a grinding wheel adapter and an arbor?

An arbor is the shaft/mount the wheel pack is assembled on; an adapter lets that arbor or wheel interface mount to the EliteDress spindle. In practice, keeping the wheel on its original arbor through the dressing cycle preserves the exact geometry you verify on the CCD camera.
